SUNRISE truck wash gantry specifications
SUNRISE is Europe Makine's rollover gantry for heavy vehicles, in two heights. These are the published figures for both models and what each one means for the depot.
- Sheet
- 02 / 04
- Subject
- Truck wash gantry
- Supplier
- europemakine.com
Machine dimensions
| Max washing height | W4000: 420 cm · W4700: 470 cm |
|---|---|
| Max washing width | 285 cm on both models |
| Machine width, excluding water shields | 465 cm |
| Water shields | 14 cm each side |
| Machine height | W4000: 510 cm · W4700: 560 cm |
| Rail gauge | 400 cm |
Reading the dimensions against your building
Washing height and width describe the largest vehicle the brushes can reach. Machine height and width describe the steel that has to fit in the bay. A W4000 stands 510 cm tall to wash a 420 cm vehicle; a W4700 stands 560 cm tall to wash a 470 cm vehicle. Both are 465 cm wide before the water shields, which add 14 cm on each side.

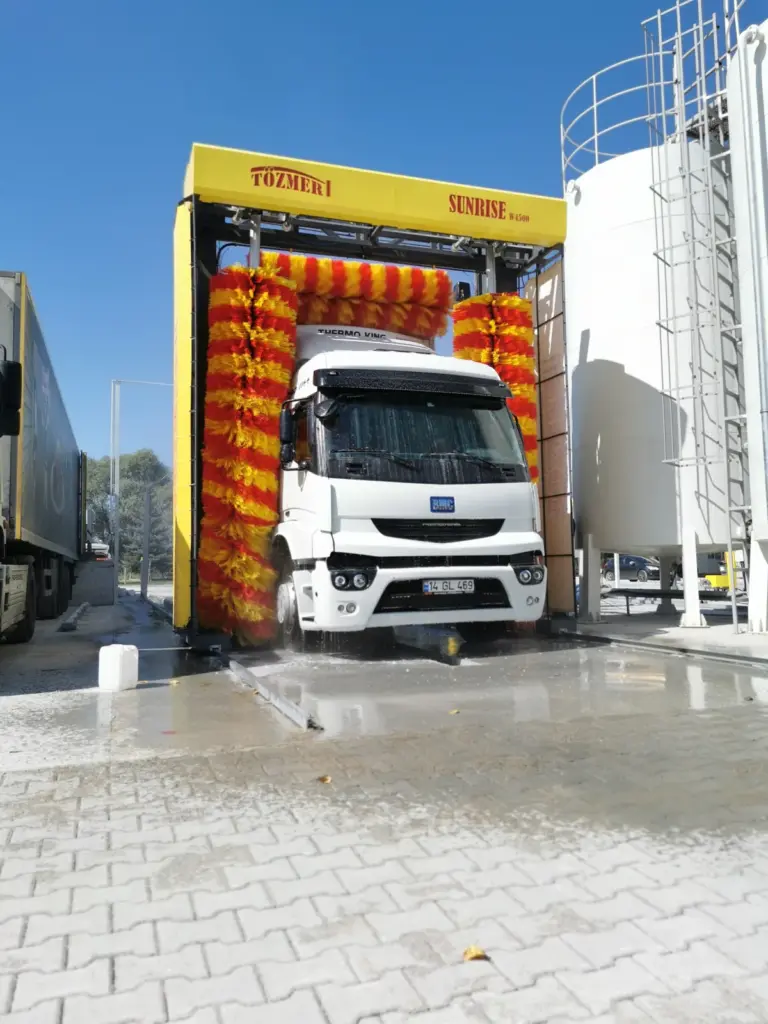

For an indoor wash hall, check the clear height under beams, lights and doors against the machine height, not the washing height. For an outdoor lane or canopy, the 400 cm rail gauge sets the width of the concrete strip the gantry runs on.
Utilities and consumption
| Voltage / frequency | 380 V / 50 Hz |
|---|---|
| Water pressure | 3.5-4 bar |
| Water requirement | 70-80 lt/min |
| Optional equipment water requirement | 250 lt/min |
| Air pressure | 6 bar |
| Air requirement | 15 lt/min |
| Electricity | 0.12-0.15 kWh/vehicle |
| Shampoo | 10-20 gr/vehicle |
Installed power and wash time by model
| Power installed, W4000 | 6 / 20 kW |
|---|---|
| Power installed, W4700 | 5.3 / 9 kW |
| Power installed, optional equipment | 50 / 75 kW |
| Washing time per vehicle, W4000 | 5 to 6 min |
| Washing time per vehicle, W4700 | 7 / 14 min |
Source: europemakine.com/systems/truck-and-bus-wash-systems/
Build and drive
The frame is A1 grade DKP steel with electrostatic powder coating, and hot-dip galvanization is available as an option. Brushes come in PE plastic or soft brush material. Energy reaches the moving gantry through a chain-driven transmission, which reduces load on the gearbox and motor.
Water runs through galvanized pipes finished in electrostatic oven paint, on separate lines for rinse water, shampoo and chemicals. Electrically operated dosing pumps meter the chemistry, and 24 V DC solenoid valves switch each line. The brush system has upright trolleys and pressure (printing) control.
Installed power, optional equipment, water recovery and cold-weather packages change the power and water figures, and Europe Makine quotes those per site.
Driver guidance and controls

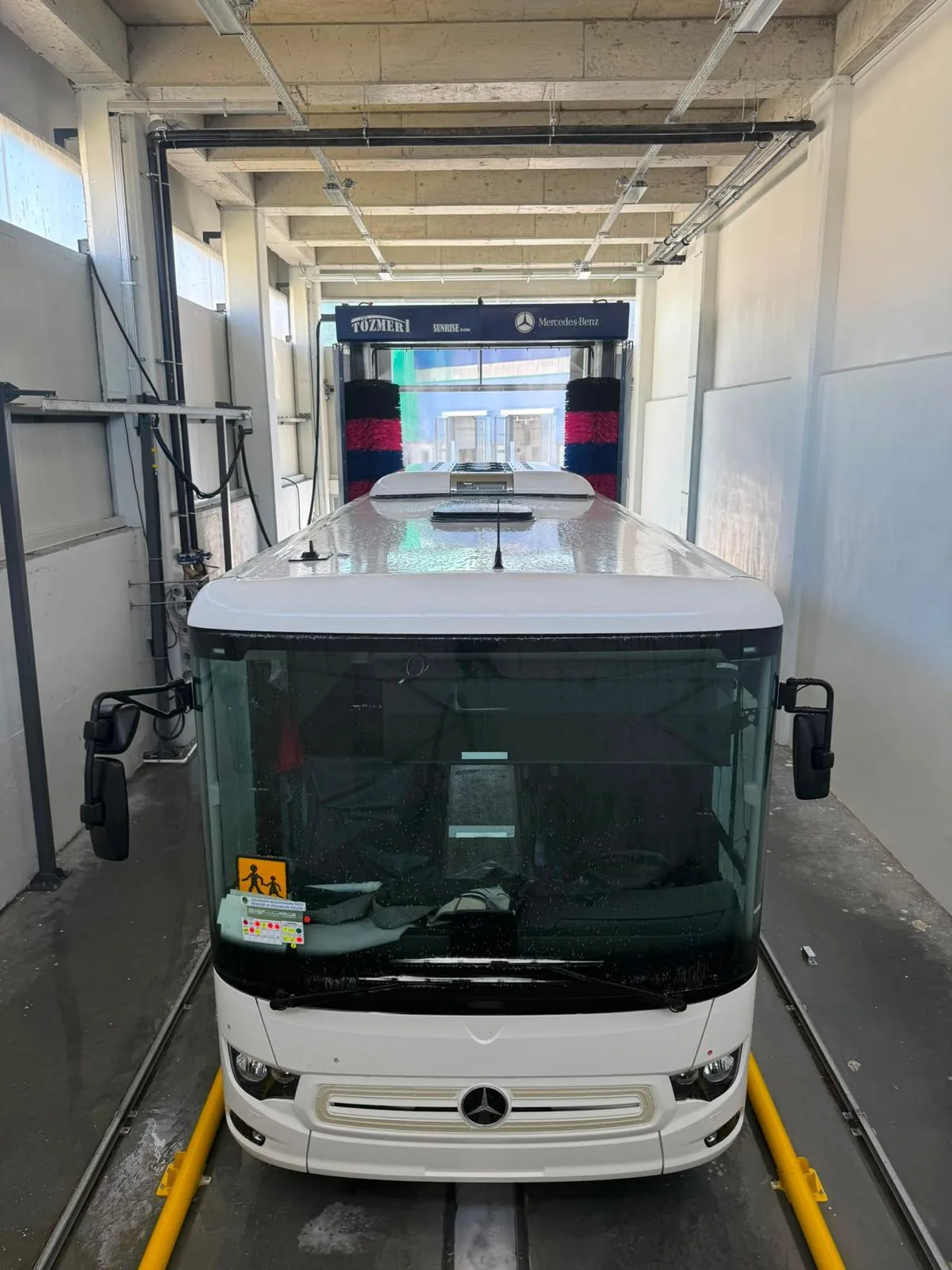

Steel router guide pipes, 3 inches in diameter, sit on the concrete floor and keep the wheels in line. A 24 VDC LED traffic light at the start of the rails and a second on the machine body tell the driver when to move: red while the machine is running or off, green when it is ready to wash.
The PLC holds an automatic program for each vehicle type, and the operator can switch to manual control. Menus are in Turkish and English.
Questions and answers
- Does the W4700 need more floor width than the W4000?
- No. Both models are 465 cm wide excluding water shields and run on a 400 cm rail gauge. The W4700 is 50 cm taller.
- Is a specification sheet available?
- Yes. The SUNRISE W4000 and W4700 specification sheet and brochure are downloadable from the SUNRISE page on europemakine.com.
- What brush material is used?
- PE plastic or soft brush, chosen per order.
Check a SUNRISE model against your bay
Send Europe Makine the bay dimensions and your tallest vehicle, and they will confirm the model in a proforma quotation.
